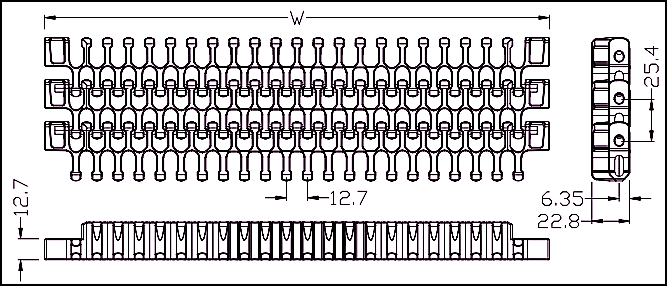

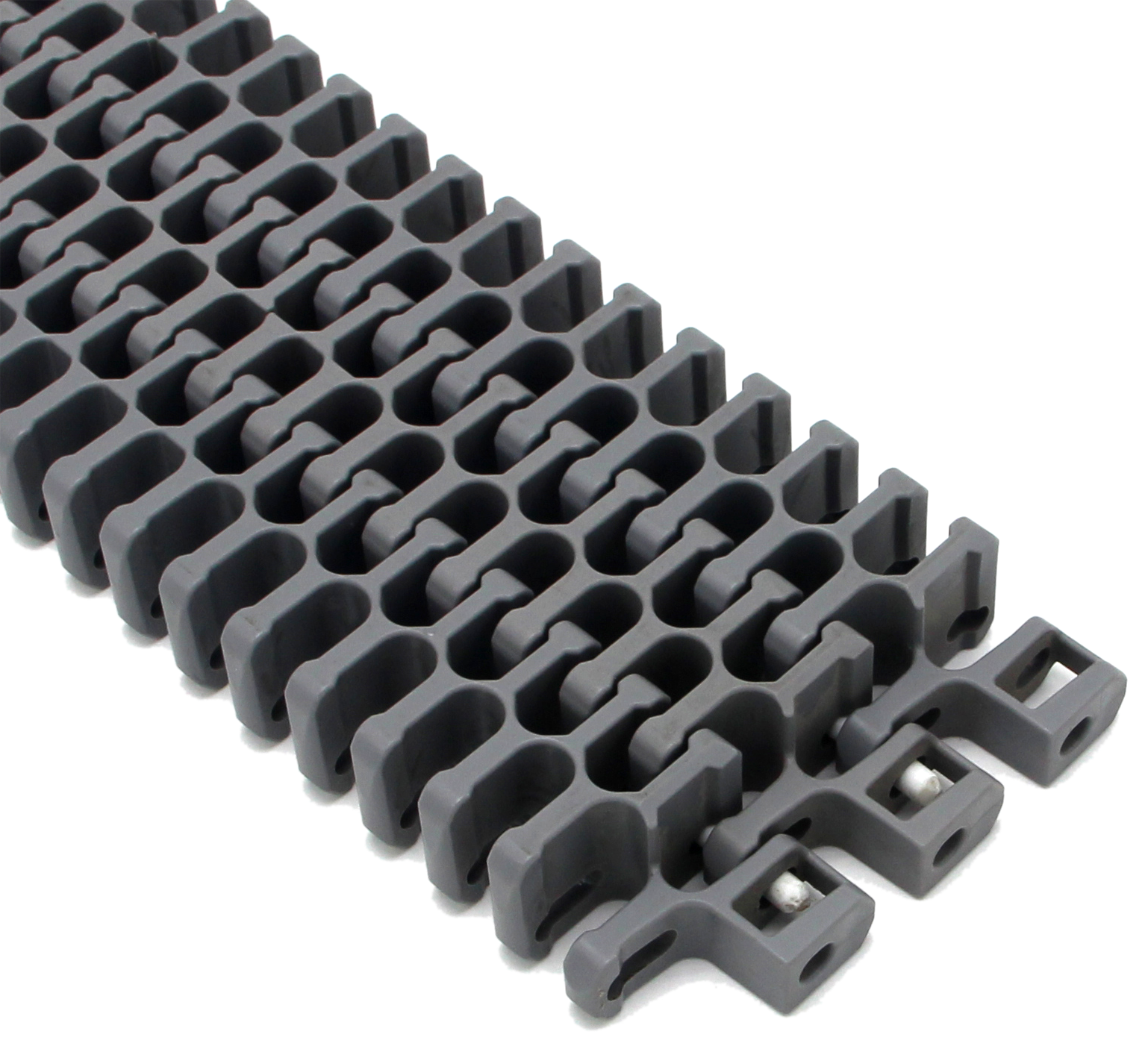

M2400 Radius Raised Rib Modular Belt

Pitch 25.4 mm Minimum Width 152.4 mm Width Increments 152.4 mm Belt thickness 22.8 mm Rod diameter 4.6 mm Radius min 2.2 x belt width Back bending radius min 10 mm

Key words：

socket

technology

32A

Category：

Pitch 25.4 mm

E-mial：

sales@pathtechco.com

Inquiry
Contact us
Product details

●  Flush Grid High Deck is 10 mm higher than the standard M2400 belt.

●  Makes turns with an inside radius of 2.2 times the belt width.

●  Works with standard M2400 wear strips.

●  Standard indent: 0.875 in (22.2 mm).

●  Contact Path Conveyor for precise belt measurements and stock status before designing equipment or ordering a belt.

Belt data

Belt material

Rod material

Nominal tensile strength straight run N/M (21°C)

Belt weight kg/m²

Standard range of belt widths mm

POM

PP

26000

14.70

152.4*n

PA

26000

14.80

PP

PP

15000

9.40

PE

PP

8000

9.90

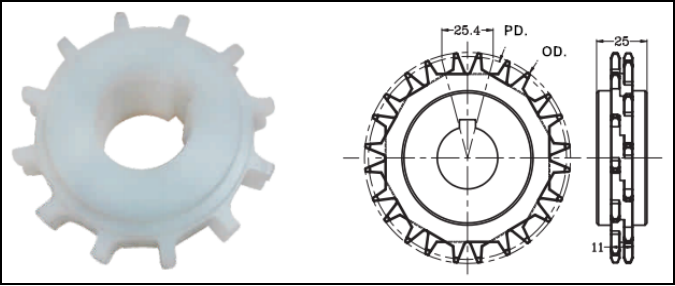

Sprocket data

Part number

No.of Teeth

Bore Dia.mm

Pitch Dia.

mm

Outside

Dia. mm

Processing

Technic

Material

Round

Bore

Square Bore

SP-2400-6T

6

20



50.8

51

Machined

PA/PP

SP-2400-9T

9

25

25

74.3

75

SP-2400-12T

12

25-40

40

98.1

102

SP-2400-16T

16

25-40

40

130.2

132

SP-2400-20T

20

25-40

40

162.4

163

Remark:

Real belt widths are in most cases 0.1% to 0.3% smaller.

For PE material up to 750 mm (30") -2 mm to 1 mm and -0.3% to 0.1% for wider belts.

For PP material up to 750 mm (30") -3 mm to 0 mm and -0.4% to 0% for wider belts.

For POM material up to 750 mm (30") -3 mm to 0 mm and -0.4% to 0% for wider belts.

The nominal tensile strength is valid for 21 °C. The admissible tensile force depends on the operating temperature near the drive sprockets. Within the temperature range allowed, the admissible tensile force may vary from 100% to 20% of the nominal tensile strength.

Disclaimer:

Product Application Disclaimer (valid for ALL Path conveyor products and mentioned on all PDS)

This disclaimer is made by and on behalf of Path conveyor and its affiliated companies, directors, employees, agents and contractors (hereinafter collectively "Path conveyor") with respect to the products referred to herein (the "Products"). SAFETY WARNINGS SHOULD BE READ CAREFULLY AND ANY RECOMMENDED SAFETY PRECAUTIONS BE FOLLOWED STRICTLY! Please refer to the Safety Warnings herein, in the Path conveyor catalogue as well as installation and operating manuals. All indications / information as to the application, use and performance of the Products are recommendations provided with due diligence and care, but no representations or warranties of any kind are made as to their completeness, accuracy or suitability for a particular purpose. The data provided herein are based on laboratory application with small-scale test equipment, running at standard conditions, and do not necessarily match product performance in industrial use. New knowledge and experience may lead to re-assessments and modifications within a short period of time and without prior notice.

EXCEPT AS EXPLICITLY WARRANTED BY PATH CONVEYOR, WHICH WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, THE PRODUCTS ARE PROVIDED "AS IS".
